SG2D ScanGaugeD Diesel Vehicle Monitor

On SALE! Special Order - Call SG2D ScanGaugeD Diesel Vehicle Monitor
Click Image for Gallery

PLEASE READ!!!

Order Shipment Notice:

Most orders are shipped within 24 hours from the order date. Orders placed on the weekend or after cutoff on Friday, and orders placed on select holidays are processed on the next business day. Please see our shipping terms for more information.

SG2D ScanGaugeD Diesel Vehicle Monitor SG2D ScanGaugeD Diesel Vehicle Monitor SG2D ScanGaugeD Diesel Vehicle Monitor SG2D ScanGaugeD Diesel Vehicle Monitor SG2D ScanGaugeD Diesel Vehicle Monitor SG2D ScanGaugeD Diesel Vehicle Monitor

Part # SG2D ScanGaugeD Diesel Vehicle Monitor

Description:

J1939 & J1708 Vehicle Monitor*

Affordable Compatibility in a Compact Design
Unlike gas powered vehicle, OBDII is not the standard for large diesel powered vehicles such as diesel pusher RVs and over-the-road long-haul trucks – these type of vehicle rely on the J1939 and J1708 protocols. Vehicle diagnostic tools for these vehicle are both cumbersome and expensive. The new ScanGaugeD changes all that.

Specialized Cable

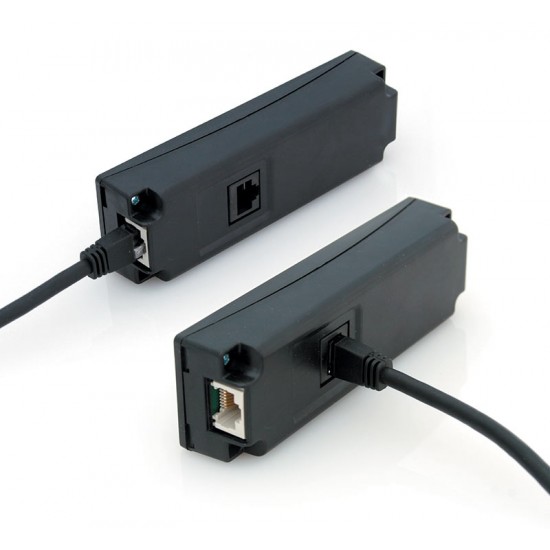

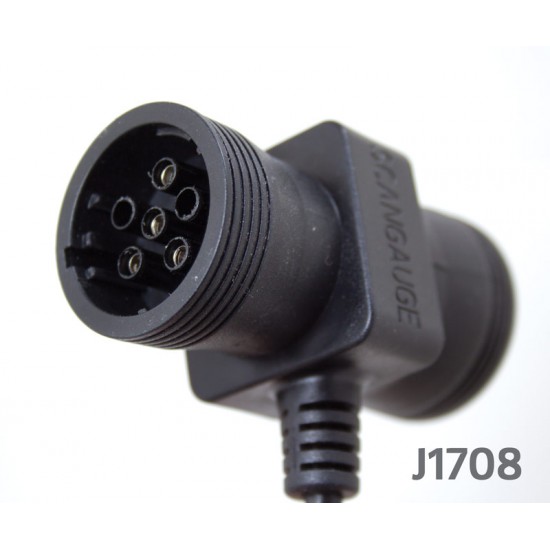

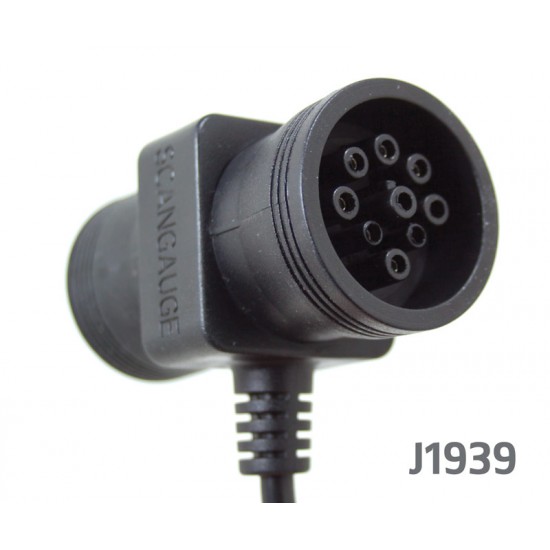

The ScanGaugeD comes with a unique dual connector cable designed to accommodate both the J1939 protocol with a 9-pin diagnostic port as well as the J1708 protocol with 6-pin diagnostic port.

Monitor The Most Vital Systems

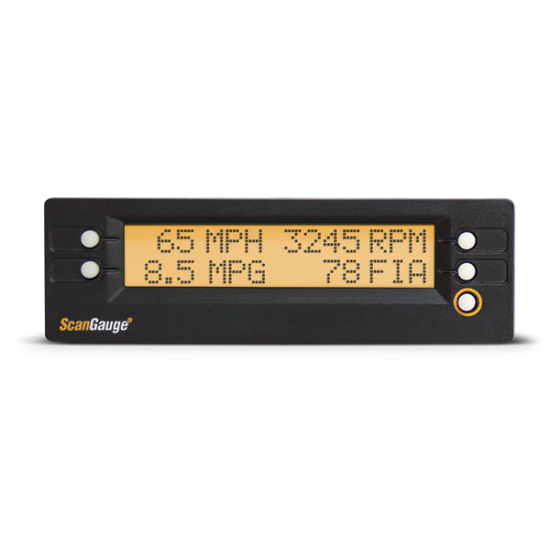

With the ScanGaugeD, you can monitor the most vital systems of your large diesel powered vehicle and provide the kind of real time information you’ve been missing. Features include more than 15 built-in digital gauges, 5 Trip Computers and an easy-to-use ScanTool that shows trouble codes — all in a compact design that installs in minutes.

  • Check & Clear Trouble Codes
  • Built-in Fuel-Saving Features
  • Multiple Trip Computers
  • Built-in & Programmable Digital Gauges
  • Performance Monitor

Exclusive Programmable Gauge System
The ScanGaugeD features the exclusive X-GAUGE™ programmable gauge system; you can monitor parameters such as Engine Oil Temperature, trip data and fuel economy information. X-Gauge™ gives you the ability to customize your ScanGaugeD by adding additional vehicle specific digital gauges.

Performance Monitor
Performance Monitor™The ScanGaugeD features the Performance Monitor™ for real-time performance measurements. The Performance Monitor gives you the ability to track your vehicle's performance over short periods of time, distance and acceleration.

Tell me more about the built in fuel saving feature.
Thanks ( Andy Smith, 06/18/2023 )
The SG2D displays instantaneous and average fuel mileage to help you keep tabs on where you are netting your best mileage based on speed, throttle position, etc. It does not alter anything to improve fuel mileage, it just gives you more data to help you drive more efficiently. ( Support )
Will this work on my 1
991 monaco signature series motorhome? ( Don Harsh, 06/11/2023 )
No, I believe that vehicle it too old for this to be compatible. ( Support )
2001 Monaco Diplomat. We have only been able to find the plugs in the engine bay over thirty feet away. Is an extension available for this scenario? ( Joe Spann, 09/27/2022 )
Unfortunately, there is not an extension that I am aware of. We would recommend contacting Scangauge directly to see if that is something they can offer. Monaco would sometimes put this diagnostic port behind a panel in front of the passenger seat, you might check that out. ( Support )
Will the scan gauge read total mileage from the engine computer. My dash odometer is not correct ( Walter Mark, 10/12/2021 )
Hello Walter, the ScanGauge will not read total mileage from the ECM .  ( Support )
will your product work on our motorhome? what will it monitor?
Thanks, Frank ( frank walter, 07/14/2021 )

Yes, this device is compatible with your vehicle.

Here is a list of the pre-loaded gauges:


( Support )
On a 2002 Monaco 330 isc Cummins what should it read for H/P ( Mark Rose, 06/19/2021 )
With an unmodified, healthy engine, it should read somewhere close to the 330HP value. I believe the calculations it uses to determine that number is based on engine HP before drivetrain loss. ( Support )
Will this work in my newmar Motorhome 2004 kountry star with a 330 cat c7 , 3126 E truck engine the dash board computer monitor doesn’t read all the gauges it has two 12 wire plug one at each end ( Donald Perry , 06/07/2021 )
Yes, the device will give you a lot more information than what your dashboard is set up for. ( Support )
Will this work with a 2001 Ford F650 Super Crewzer with a Cat 3126B? ( Jeff, 02/13/2021 )
As long as it has a round 6 or 9 pin connector near the steering column it should connect and show some data. Being the age it is, it may not have all gauges supported. ( Support )
I have a 2000 Damon Ultrasport model 3860 with a cummins 275 hp iSB engine on a Freightliner chassis. Will this scanner work? If so how do I connect?
Thanks ( John Knight, 01/03/2021 )
If you have a round diagnostic connector at your cockpit area, it should connect and read information. On an early model like that, you probably won't get as much data as the newer ones but it should give you basic parameters. ( Support )
can you tell me if this system will work for a 2008 isc 8.3l?

thanks ( chris howes, 03/03/2020 )
Yes, this will work on your 2008 Holiday Rambler Ambassador. ( Support )
Does this read boost amd trans temp on 2005 c7 ( 01/05/2019 )
Yes it does. Here is a list of the pre-programmed gauges but there are also "X-Gauges" which are gauges that can be programmed for specific vehicles.

( Support )
Is this compatible with the Cat C7 on my 2007 Itasca Meeidian? ( Jim Hellyer, 10/13/2018 )
Yes it would be. ( Support )
Is this unit compatable with my 2007 Jayco Chevy C5500 Seneca. If not, what would you suggest. ( RONALD GREGORY, 09/17/2018 )
You were close! Even though your C5500 is diesel, it still uses the OBD2 diagnostic port. You would order the standard ScanGauge2: https://www.ultrarvproducts.com/SG2-ScanGaugeII-OBD2-Vehicle-Monitor ( Support )
does the scan gauge read transmission temp?4 ( richard chartier, 08/28/2016 )

Richard,

Yes the ScanGaugeD does read transmission temperature. I would call ScanGauge with your vehicle information to see if yours has that coverage.

( Support )
I have Américan dream 2000 cummins ISC 330hp engin can I use the Scan gauge? Doyou ship to Canada ? ( Camil Boucher, 05/16/2016 )
Not answered yet.

Will this ScanGaude work with a 2010 Damon Avanti with the Maxxforce5 4.5L V6 Diesel in a 2009 Workhourse w18 chassis. Thanks for ypur help

 ( Tom McNay, 11/26/2015 )

I would be more inclined to think the ScanGaugeII would be the appropriate unit for your vehicle. You will need to check to see if you have an OBDII port (trapezoid shape) near your steering column. If there is none then look for a round 6 or 9-pin connector.

( Support )

with this work with a 2010 freightliner rv coach with cummins 360?

 ( rich, 11/20/2015 )

Rich,

Yes it is compatible with that vehicle.

( Support )

Will this work for a 1993 Cummins 8.3litre on a Spartan chassis?

 ( Stanley Nowiki, 10/21/2015 )

Stanley,

The ScanGaugeD will work on vehicles dating back to around 1987 but you would want to verify that it has a round 6-pin connector up near the dash so that you would be able to plug in and monitor.

( Support )

Please advise if this unit will work on my 1999 Fleetwood Discovery 34Q ( 5.9 Cummins / Allison Trans ) If required I can send VIN at later date due to currently out of town, Thanks

 ( Glenn Scott, 07/29/2015 )

Glenn,

Yes that would communicate with your vehicle. The only caveat is that you must have the round diagnostic port located up front near the steering column. Some of the earlier models only had the port back at the engine, so just verify that.

( Support )
