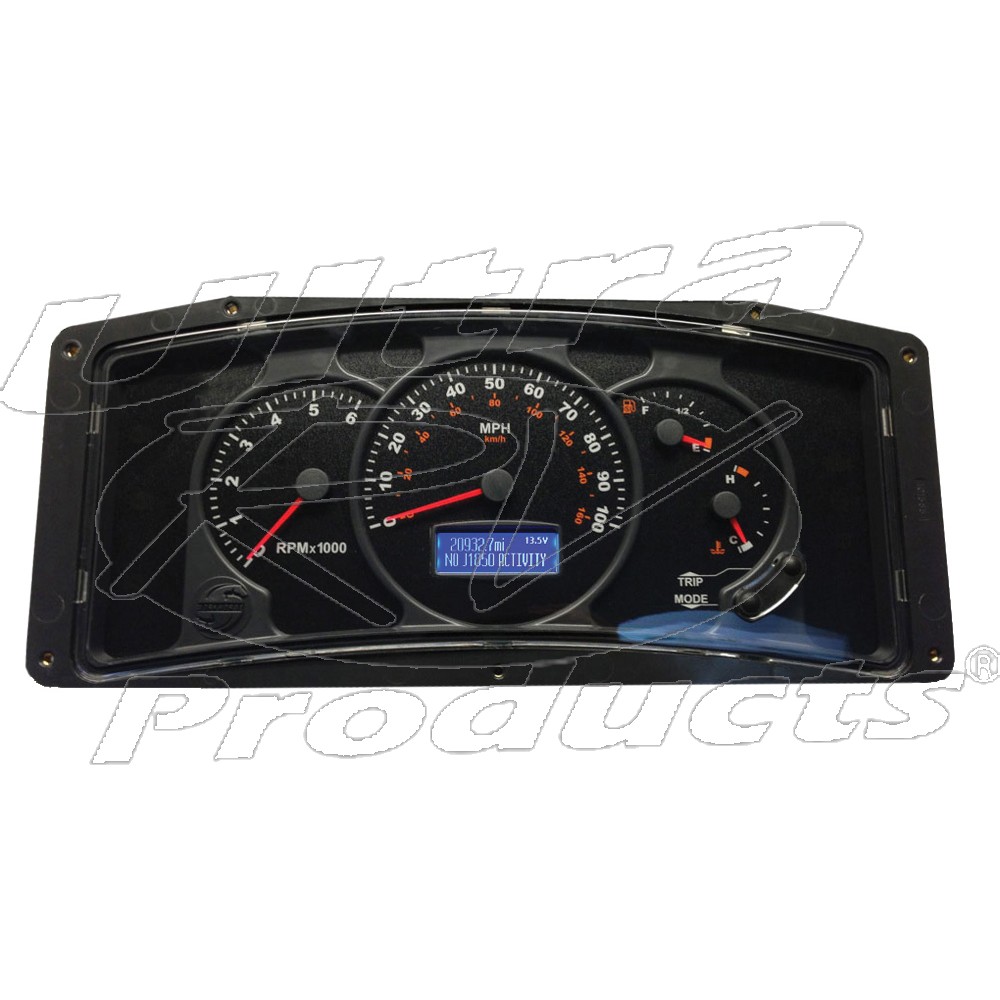

105297G - Workhorse Actia Instrument Cluster Repair Service (Gauge Motor Replacement)

On SALE!

Click Image for Gallery

PLEASE READ!!!

Order Shipment Notice:

Most orders are shipped within 24 hours from the order date. Orders placed on the weekend or after cutoff on Friday, and orders placed on select holidays are processed on the next business day. Please see our shipping terms for more information.

Guidelines:

You are responsible for shipping us your cluster for repair.
Please ensure your cluster is clean before sending it to us.
Please note that we have a 2-3 business day turnaround time from the time we RECEIVE your cluster.
This repair is only for inoperative gauges.

Always send the instrument cluster as a complete unit. Do not take it apart or just send the internal parts, we will not return it until we have the casing due to the high risk of damage in shipping.

Ship Your Cluster To:

Ultra RV Products

3912 Harrison Ave.

Centralia, WA 98531

Click Here: Cluster Repair Form - Include with Cluster

This quality repair service includes the following work performed to your Workhorse instrument cluster:

Full power up and test of the instrument cluster before & after repairs
Replacement of all gauge stepper motors with higher quality motors
EEPROM data (mileage) preserved so display automatically reads correct mileage
Lifetime warranty on gauge motors
Please anticipate a 2-3 business day turnaround time from the time we RECEIVE your cluster.
Your account will be updated with the return tracking number upon our receipt of your cluster. The tracking number will be emailed to you. The tracking number will not become active until the cluster repair is finished, which is generally 2-3 business days. To check the status of your repair, please check the tracking number for movement on the shipper’s website. If the shipment hasn’t been scanned by the shipper yet, then your cluster repair is still in process.

Applications:

Most Workhorse Chassis Motorhome and Commercial Vehicles 2003-2006

2005 national dolphin w22 for the past year my fuel gauge reads past full at all times I have just learned to live with it last week on a trip the speedometer won't go to zero it starts at around 30mph, I did a couple of diagnostic tests it eventually went down to 15mph after overnight its back to starting at 30 again will the gauge motor repair correct these 2 issues ? ( Frank Larez, 07/13/2023 )

Not answered yet.

Dash gauges work good but digital display for mileage and transmission indicator unreadable. Speedometer 5-6 MPH fast according to my Garmin

( Michael Bourque , 11/29/2022 )

The LCD screen can be replaced yourself by purchasing this product: https://www.ultrarvproducts.com/105297S-Workhorse-Actia-Instrument-Cluster-*Replacement-Screen-Kit*

Alternatively, you can send your instrument cluster to us and we will replace the screen as well as all the gauge motors: https://www.ultrarvproducts.com/105297R-Workhorse-Actia-Instrument-Full-Cluster-Repair-Service-(Upgraded-LCD-And-Gauges)

The speedometer error is likely not an issue with the instrument cluster. The speedometer signal is provided by the ECM and it could have the incorrect rear axle ratio or tire size information which is causing the error. We can adjust the speedometer by making adjustments to the ECM with our UltraPower Custom Tuning: https://www.ultrarvproducts.com/Ultrapower-GM-Workhorse-8.1L-Custom-Tuning

( Support )

2004 Fleetwood Terra motorhome on a 2003 Workhorse Chassis: Speedometer works improperly, Temperature gauge works improperly, not sure if fuel gauge is working correctly.
Do you repair this cluster??
Thank you ( Bill Alexander, 10/01/2019 )

Yes we do, here is a link to the repair service we offer for gauges only: https://www.ultrarvproducts.com/105297G-Workhorse-Actia-Instrument-Cluster-Repair-Service-(Gauge-Motor-Replacement) ( Support )

2003 Gulfstream Sun Voyager. Gas gauge does not register at all. Mechanic said he grounded sensor but the gauge still didn't work ( richard swenson, 04/18/2019 )

I'm sorry but we do not work on this old of a cluster. We recommend TJ's Speedometer Repair in Tucson, AZ: http://tjsspeedometer.com/ ( Support )

2002 Safari motorhome: voltage meter not reading correctly. buzzing sound behind dash. All other gauges working. No local repair shops. Can you repair this cluster. @002 GMC workhorse chassis ( Stephen Moorhouse, 04/15/2019 )

We do not repair the analog instrument clusters, we refer those to TJ's Speedometer Repair in Tucson, AZ: http://tjsspeedometer.com/ ( Support )
